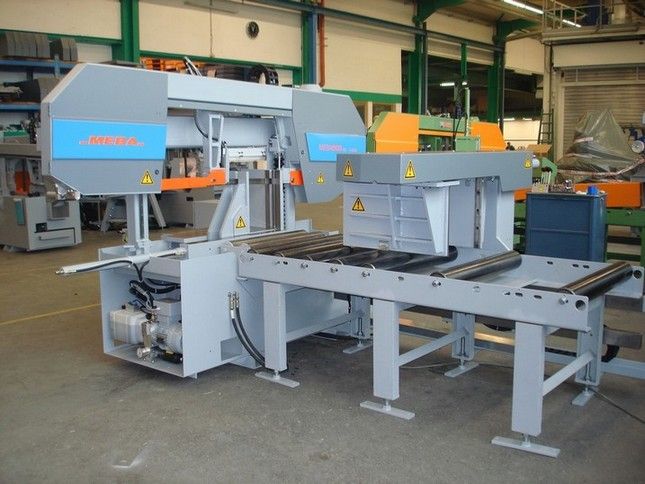

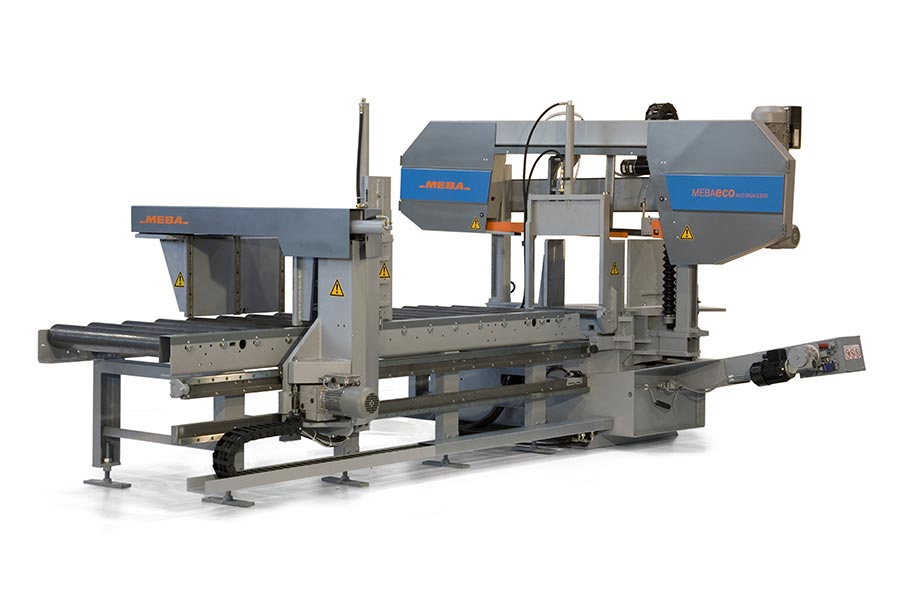

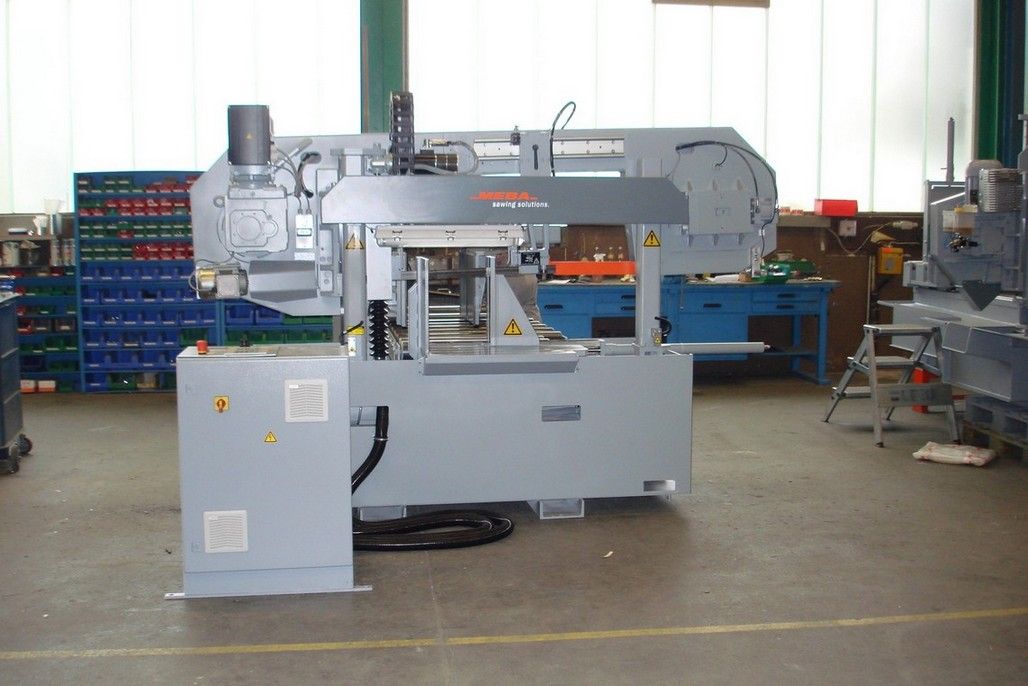

MEBAeco 410 A-1300

MEBAeco: Ready-made individuality

2-column linear-guided metal band sawing machine for straight cuts. Particularly suitable for universal use with different cross-sections and materials.

Standard equipment

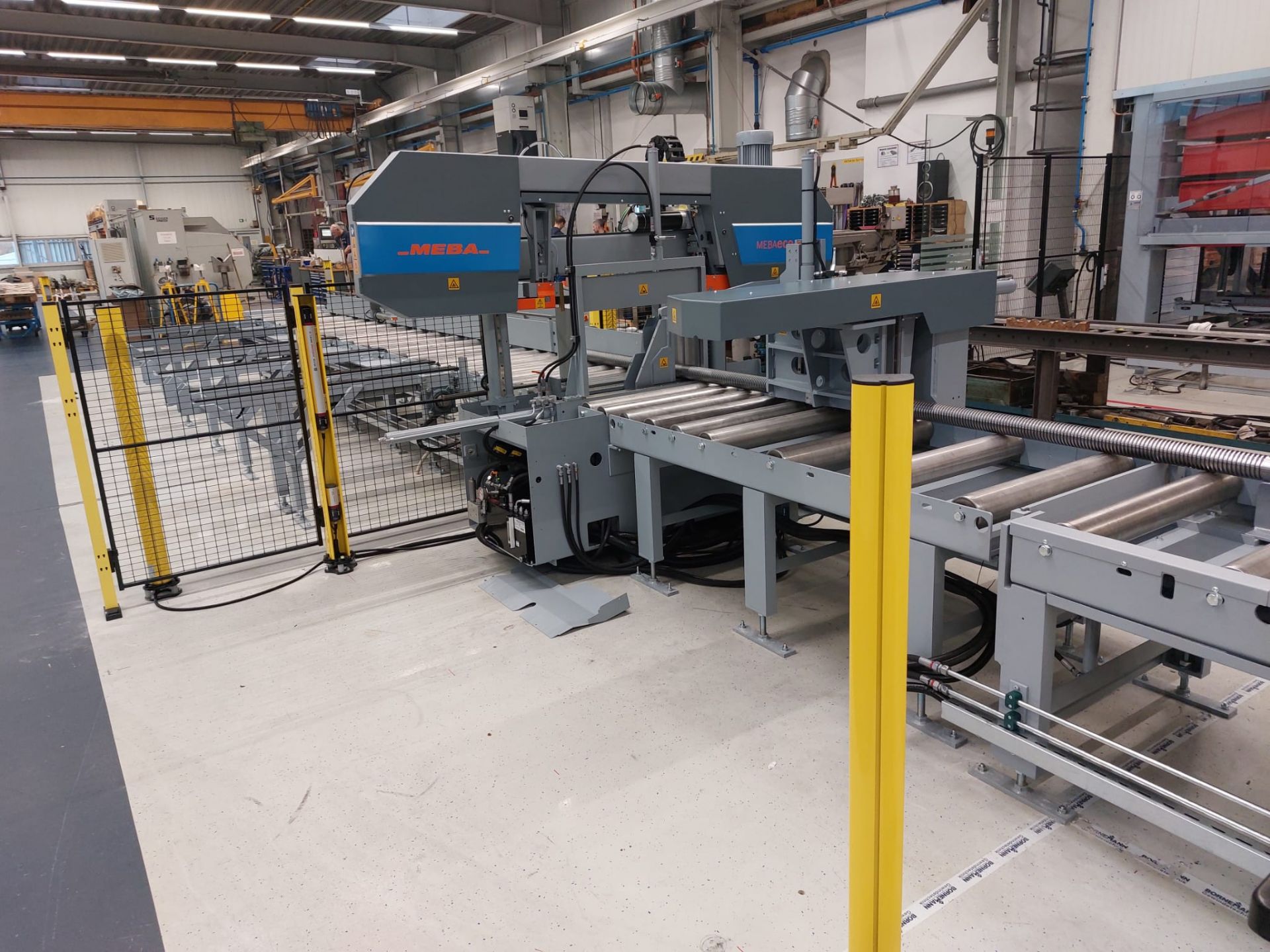

• Access security in accordance with CE standard via light barrier
• MEBA automatic band saw in proven two-column linear design and integrated MEBA clamp insertion system from 5-1300 mm per stroke (extendable in 1000 mm increments, clamp insertion mounted on manual MEBA roller conveyor).
• Menu-driven, intelligent 4.3" touchscreen control via Windows CE 6.0 operating system: Program memory for 1000 data records; Continuous bus networking; Option to switch between units of measurement; Documentation and information on faults and warnings
• MEBA high-performance package: Saw feed via frequency-controlled ball screw drive with automatic cutting pressure and feed monitoring. This ensures optimum conditions for every sawing task, i.e., constant pressure for solid material and constant feed for thin-walled profiles.
• An operating hours counter is integrated for operating data collection.
• Slip-free material transport by adjusting the feed speed Fast and precise material length feed via rack and pinion and AC drive with a maximum stroke length of 1300 mm with integrated roller conveyor up to 2000 mm.
• Opening of the clamping jaws of the pliers insertion system on both sides.
• Ribbed strips for heavy material transport
• Saw frame in solid, low-vibration welded steel construction
• Saw blade inclined at 3° to the material support surface for maximum cutting performance and service life when sawing steel construction profiles
• Combined saw blade guide, precision bearings for gentle deflection of the saw blades. Chamfered carbide slide guides for saw blade guide
• Rapid lowering of the saw frame via automatic height switch bar to just before the sawing material. During serial cutting, the saw frame only moves briefly over the material and a new section of material can be positioned. Optimal cycle times for single and serial cutting.
• AC frequency-controlled band saw drive, infinitely variable from 15 to 150 m/min Pre-tensioned, low-maintenance recirculating ball bearings on the material feed and saw frame feed for smooth, jerk-free, and vibration-damping feed
• Control panel set up separately
• Movable belt guide arm, adjustment to material width
• Chip cleaning brush, rotating
• Hydraulic saw blade tensioning
• Operating instructions and spare parts list (digital)
• 1 MEBA bimetal saw blade 4/6 ZpZ on machine
• CETOP hydraulic system
• Coolant device (approx. 100 liters). Can be combined with MEBA micro-spray device as an option.
• Silver gray/blue gray paint finish (RAL 7001/RAL 7031)
